Inefficient energy consumption is a problem relevant to any industry: from heavy industry to the service sector. Usually, electricity costs are measured only at the entrance to the enterprise’s power system, while consumption at primary and secondary consumers remains unnoticed. And in vain: power losses due to faulty or inefficient equipment, unsuccessful work schedules, improperly connected or configured electricity meters, and unaccounted loads increase the cost of the final product or service.
Energy consumption monitoring is a system of continuous control and analysis of electricity consumption that allows tracking consumption in real-time, identifying anomalies, and optimizing energy costs. Modern monitoring systems provide detailed information about when, where, and how much energy is consumed, enabling informed decisions on energy saving.
What is Energy Consumption Monitoring?
Energy consumption monitoring is a complex of technical and software tools that:
- Automatically collect data from electricity meters
- Transmit information to a centralized system
- Process and analyze the received data
- Visualize results in the form of graphs, diagrams, and reports
- Generate warnings about exceeding established limits
The monitoring system is installed at all key consumption points: input distribution devices, workshops, production lines, individual machines and equipment, lighting, ventilation, and air conditioning systems.
How is Monitoring Carried Out?
The energy consumption monitoring process includes several stages:
1. Equipment Installation
Special controllers and recorders are installed at the facility, which are connected to existing electricity meters or installed additionally. The equipment records load parameters for each subnetwork: voltage, current, power, power factor, frequency, consumption of active and reactive energy.
2. Data Transmission
Collected data is transmitted to the centralized system through wired or wireless communication channels (Ethernet, Wi-Fi, GSM, LoRaWAN). Modern systems support cloud data storage, which provides access to information from anywhere in the world.

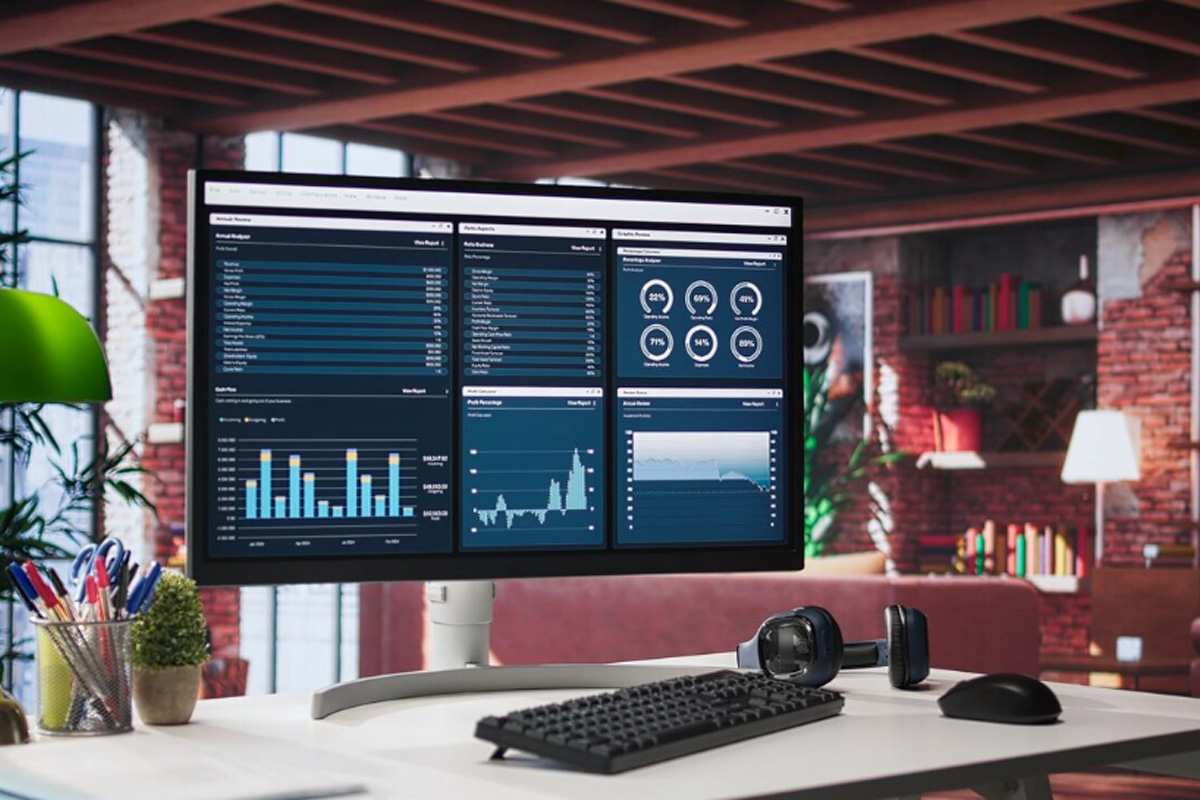

3. Analysis and Visualization
Specialized software processes the received data and presents it in a convenient form:
- Load graphs by hours, days, months
- Diagrams of consumption distribution by workshops or equipment
- Tables with details by tariff zones
- Comparative analysis of consumption for different periods
4. Anomaly Detection
The system automatically monitors deviations from the normal operating mode and generates warnings when:
- Established consumption limits are exceeded
- Uncharacteristic load surges occur
- Equipment operates outside working hours
- Power factor is low
- Phase unbalance is detected
Advantages of Implementing a Monitoring System
Implementing an energy consumption monitoring system provides tangible results:
Finding Sources of Extra Costs
Detailed analysis shows which specific equipment consumes more energy than it should and where the main losses occur. This allows precisely determining priorities for modernization.
Redistributing Load Between Tariff Zones
Analysis of hourly consumption helps shift energy-intensive processes to nighttime or hours with reduced tariffs, reducing costs by 15-25% without capital investments.
Optimizing Maintenance Schedule
Monitoring shows the actual equipment load and allows planning maintenance during periods of minimum load without stopping production.
Preventing Malfunctions
Abnormal energy consumption often indicates emerging equipment problems: bearing wear, filter contamination, insulation failure. Early detection of such signs allows preventing serious breakdowns and downtime.
Evaluating Energy-Saving Measures Effectiveness
After implementing energy-saving technologies, the monitoring system objectively shows real savings, allowing evaluation of investment payback.
Simplifying Addition of New Loads
When connecting new equipment, the system shows whether there is a power reserve and how the new load will affect the enterprise’s overall power system.
Quick Diagnostics of Equipment Failure Causes
Historical consumption data helps analyze what preceded the breakdown and prevent similar situations in the future.
Reducing Electricity Costs
Comprehensive application of all monitoring capabilities allows reducing electricity costs by 20-35% in the first year of system operation.
Typical Problems Identified by Monitoring
Practice of implementing monitoring systems at various enterprises shows recurring problems:
Inefficient Equipment Operation Outside Working Hours
Equipment that should be turned off at night or on weekends continues to consume energy. Reasons: forgotten to turn off, faulty switches, operation in standby mode with high consumption.
Peak Loads During Maximum Tariff Hours
Energy-intensive processes are launched during peak hours when electricity costs are 2-3 times higher than at night. Shifting such processes to nighttime provides quick savings.
Low Power Factor (cos φ)
Inductive load (electric motors, transformers) creates reactive power that the enterprise pays for but does not receive useful work. Installing compensating devices reduces these payments.
Phase Unbalance in Three-Phase Networks
Uneven load distribution across phases leads to additional losses and can disable equipment.
Leaks and Unauthorized Consumption
The system records consumption in areas where there should be none, helping to identify leaks or unauthorized connections.
Suboptimal Operation of Ventilation and Air Conditioning Systems
Systems operate at full power even when unnecessary (for example, in empty rooms or with open windows).
Technical Solutions for Monitoring
Modern energy consumption monitoring systems are built on various technical solutions:
Smart Electricity Meters
Metering devices with data transmission function that automatically send readings to the centralized system. Support multi-tariff accounting and time-based details.
Programmable Logic Controllers (PLC)
Devices that collect data from conventional meters through pulse outputs or communication interfaces (RS-485, Modbus) and transmit it to the monitoring system.
Power Quality Analyzers
Professional instruments that record not only consumption but also network quality parameters: voltage, frequency, harmonics, sags, and overvoltages.
Current Sensors (Current Transformers)
Installed on equipment power cables to measure consumed current without interfering with existing wiring.
Data Gateways and Concentrators
Devices that collect information from several instruments and transmit it to the cloud or local server via Ethernet, Wi-Fi, or GSM.
Software
SCADA systems and specialized platforms for visualization, analysis, and report generation. Modern solutions work through a web interface and are accessible from any device.
Stages of Monitoring System Implementation
The process of implementing an energy consumption monitoring system includes several stages:
1. Preliminary Survey
Analysis of the existing power supply system, determining metering points, assessing the need for additional equipment installation.
2. Technical Specification Development
Defining monitoring goals, selecting parameters for control, forming requirements for equipment and software.
3. Design
Developing the instrument installation diagram, selecting communication channels, determining system architecture.
4. Installation and Commissioning
Installing controllers, sensors, configuring communication, integrating with existing meters, testing the system.
5. Personnel Training
Training employees to work with the system, generate reports, and analyze data.
6. Operation and Support
Regular monitoring, software updates, technical support, efficiency analysis.
Monitoring Implementation Cost
The cost of an energy consumption monitoring system depends on several factors:
- Number of metering points (the more controlled lines, the higher the cost)
- Type of equipment (basic meters or professional analyzers)
- Data transmission method (wired or wireless channels)
- Software functionality (basic monitoring or advanced analytics)
- Necessity of integration with other systems (ERP, SCADA)
For small enterprises, the cost can start from several thousand dollars, for large industrial facilities — reach tens of thousands. However, the payback period is usually 12-24 months due to identified savings.
How to Order Energy Consumption Monitoring?
Deka Group offers comprehensive solutions for implementing energy consumption monitoring systems for enterprises of any scale.
Contact us in a convenient way:
📞 Phone: +996 555 474 312 (call, Telegram, WhatsApp)
✉️ Email: info@dekagroup.org
📍 Address: Kyrgyzstan, Bishkek, Chuy Avenue 164a, office 211
Cooperation process:
- You submit a request by phone or email
- We conduct a free consultation and preliminary site survey
- We prepare technical and commercial proposals
- We sign a contract with clear timelines and conditions
- We develop and implement the monitoring system
- We train personnel and provide technical support
Frequently Asked Questions
— Can monitoring be installed on existing meters?
Yes, in most cases, the system connects to already installed meters through pulse outputs or communication interfaces. Additional equipment is required only in the absence of necessary outputs.
— Is internet required for the system to work?
For cloud solutions — yes. However, options with a local server or data storage on controllers with periodic download are possible.
— How quickly does the monitoring system pay for itself?
The average payback period is 12-24 months. In some cases (with large hidden losses), payback can be achieved in 6-8 months.
— Can consumption be monitored remotely?
Yes, modern systems provide access through a web interface or mobile application from anywhere in the world.
— Do you work outside Bishkek?
Yes, we implement projects throughout Kyrgyzstan, as well as in CIS countries, Thailand, and Malaysia.
An energy consumption monitoring system is a tool that turns invisible energy losses into specific figures and shows exactly where savings can be achieved. Start controlling your energy consumption today and get real savings from the first month of system operation.
